cover plates and wall covers

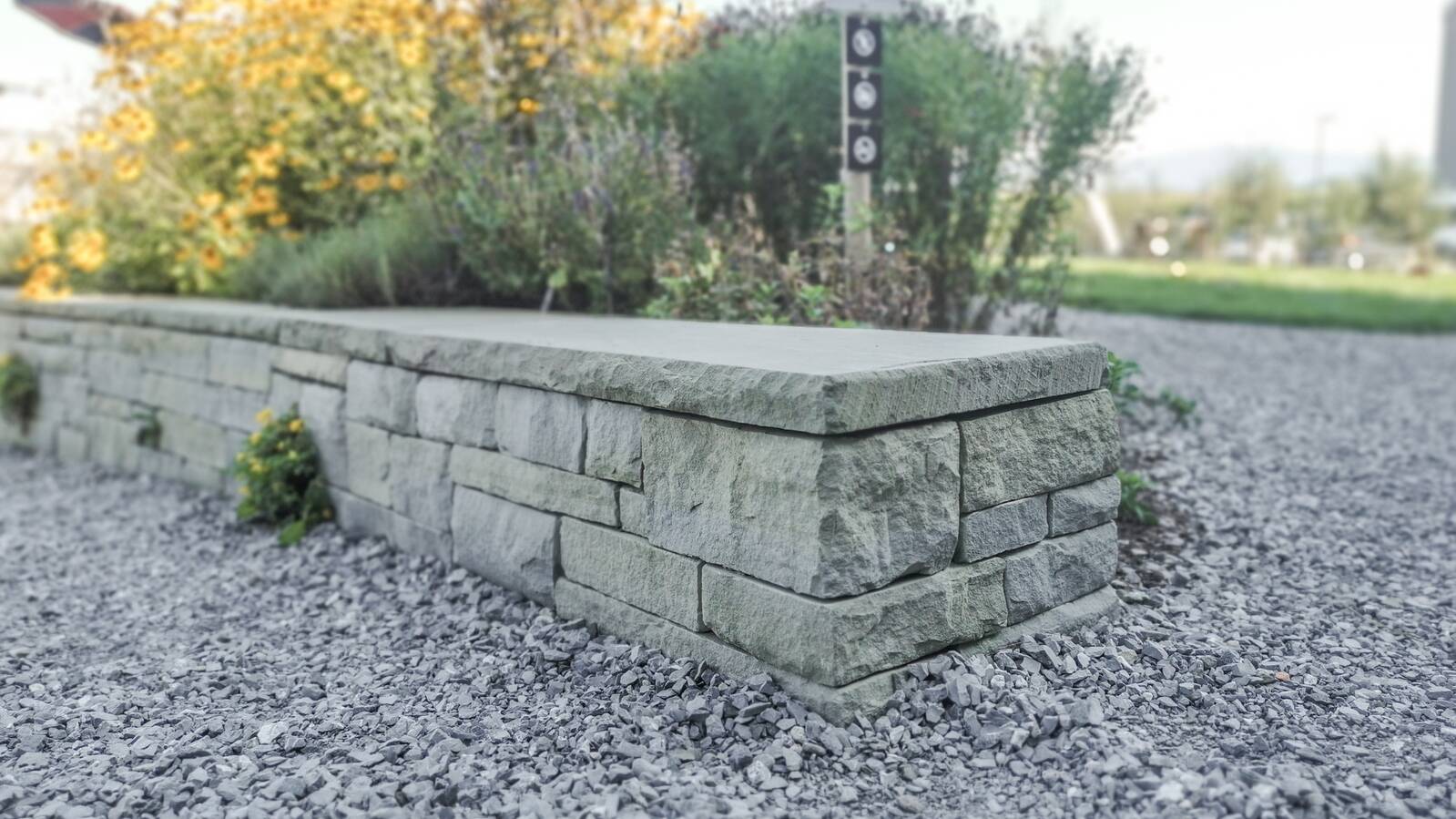

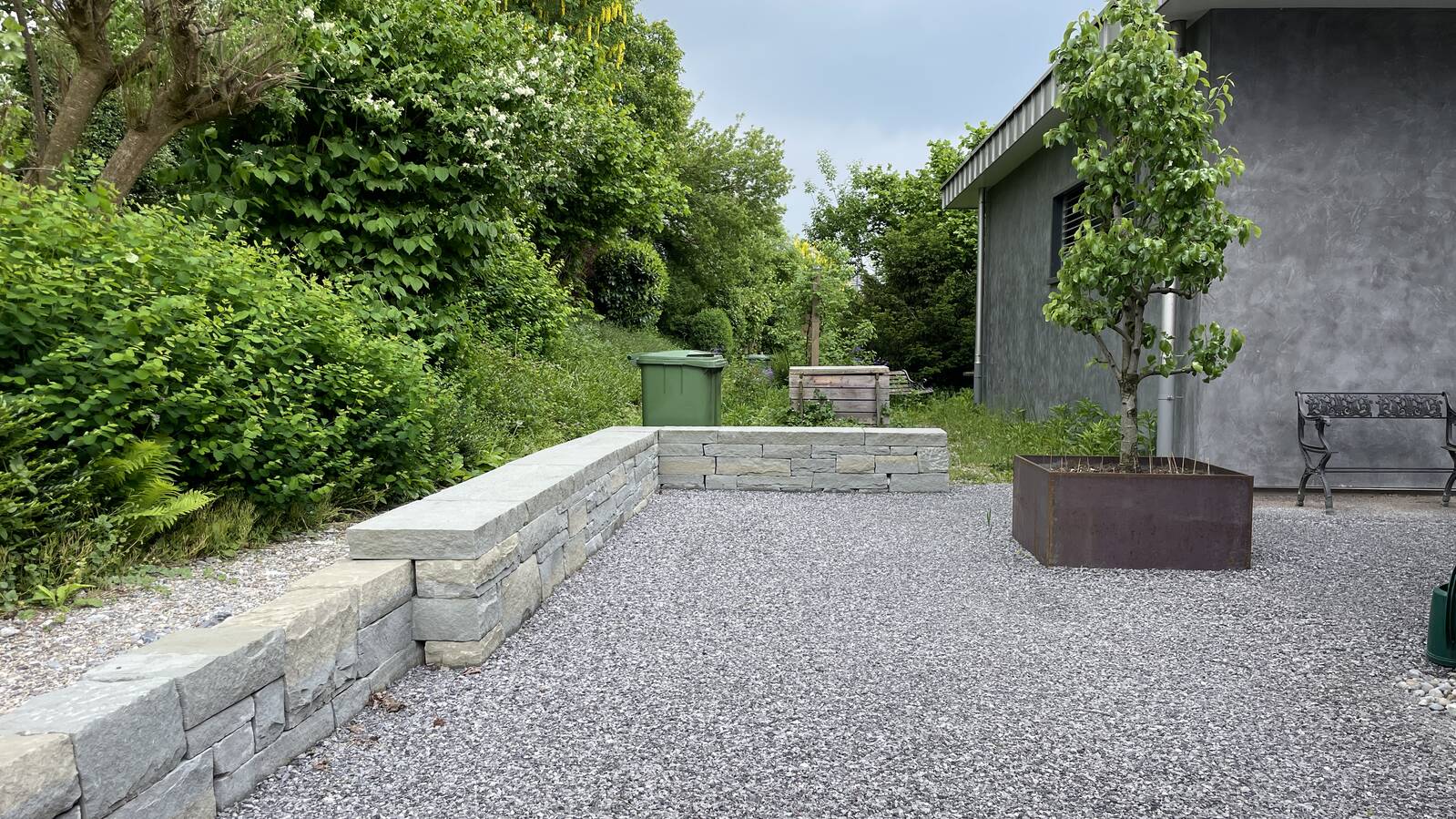

Walls should be sealed at the top to prevent water from penetrating the masonry and damaging it. This is where our cover plates come into play.

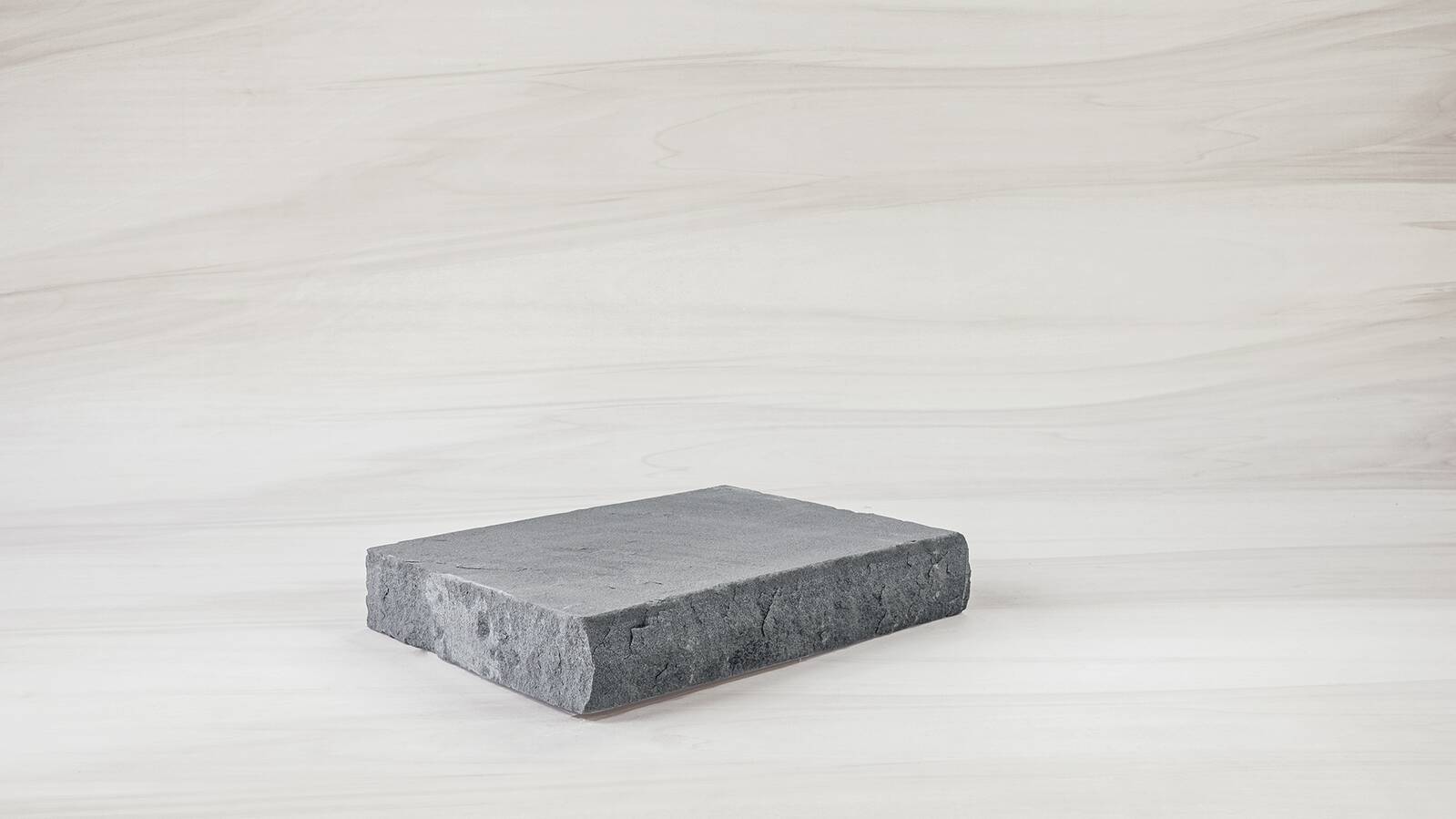

Cover panels raw
Split raw surface and underside.
Edges raw
Free lengths 60-120 cm
Fixed widths 30 / 40 / 50 / 60 cm
Thickness approx. 7-8 cm
Cover plates strapped
Surface sheared, underside sawn.
Edges rough-split.
Free lengths 60-120 cm
Fixed widths 30 / 40 / 50 / 60 cm
Thickness 6 cm, ±0.2 cm

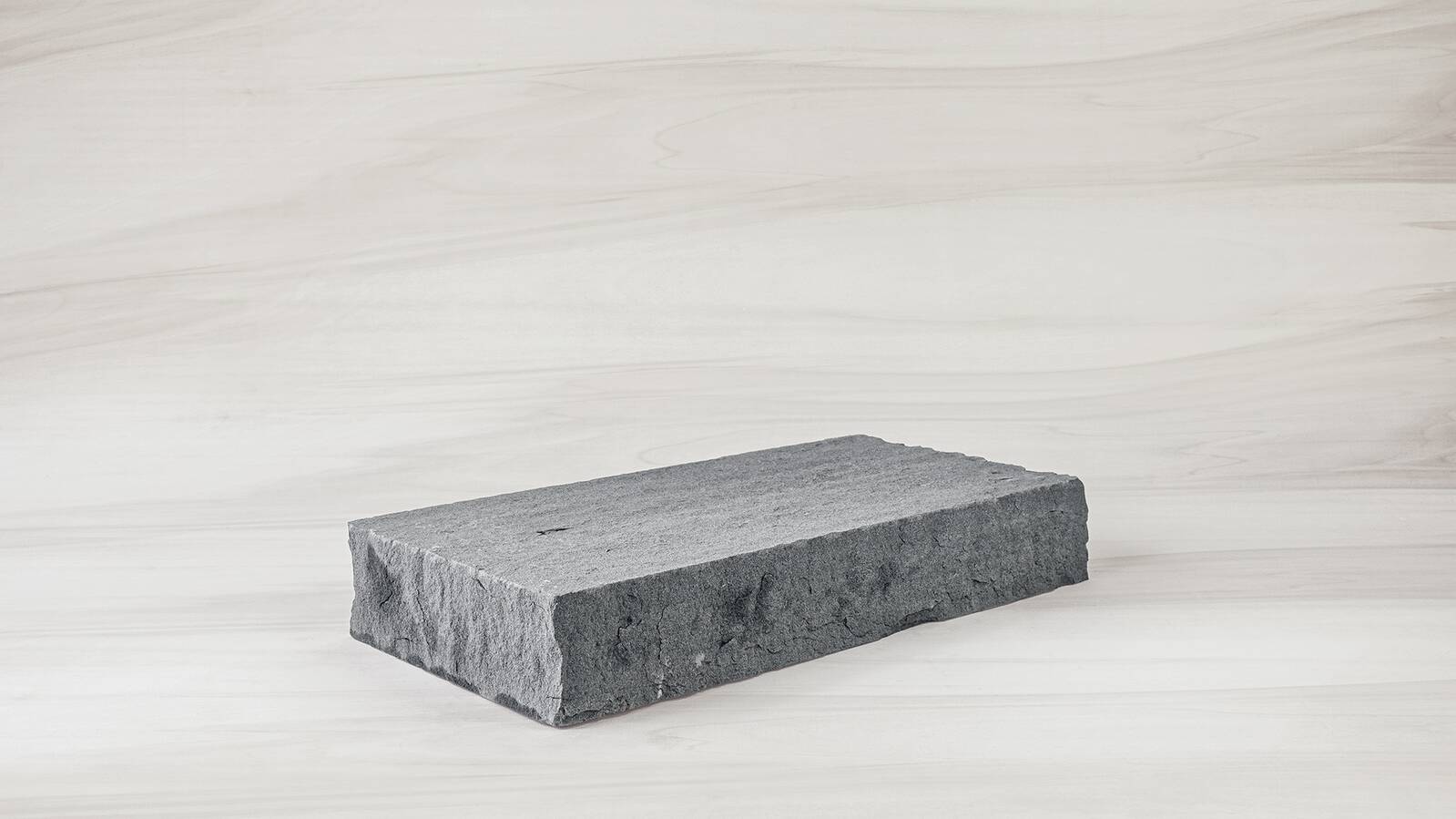

Wall cover
Sawn or split surface
Bottom side sawn or split.
Free lengths 30-70 cm
Fixed widths 30 / 40 / 50 / 60 cm
Free thicknesses 10-20 cm
Machined cover plates, single-sided
Surface roughly split. One long side embossed.
Free lengths 60-120 cm
Fixed widths 30 / 40 / 50 / 60 cm
Thickness approx. 6-7 cm

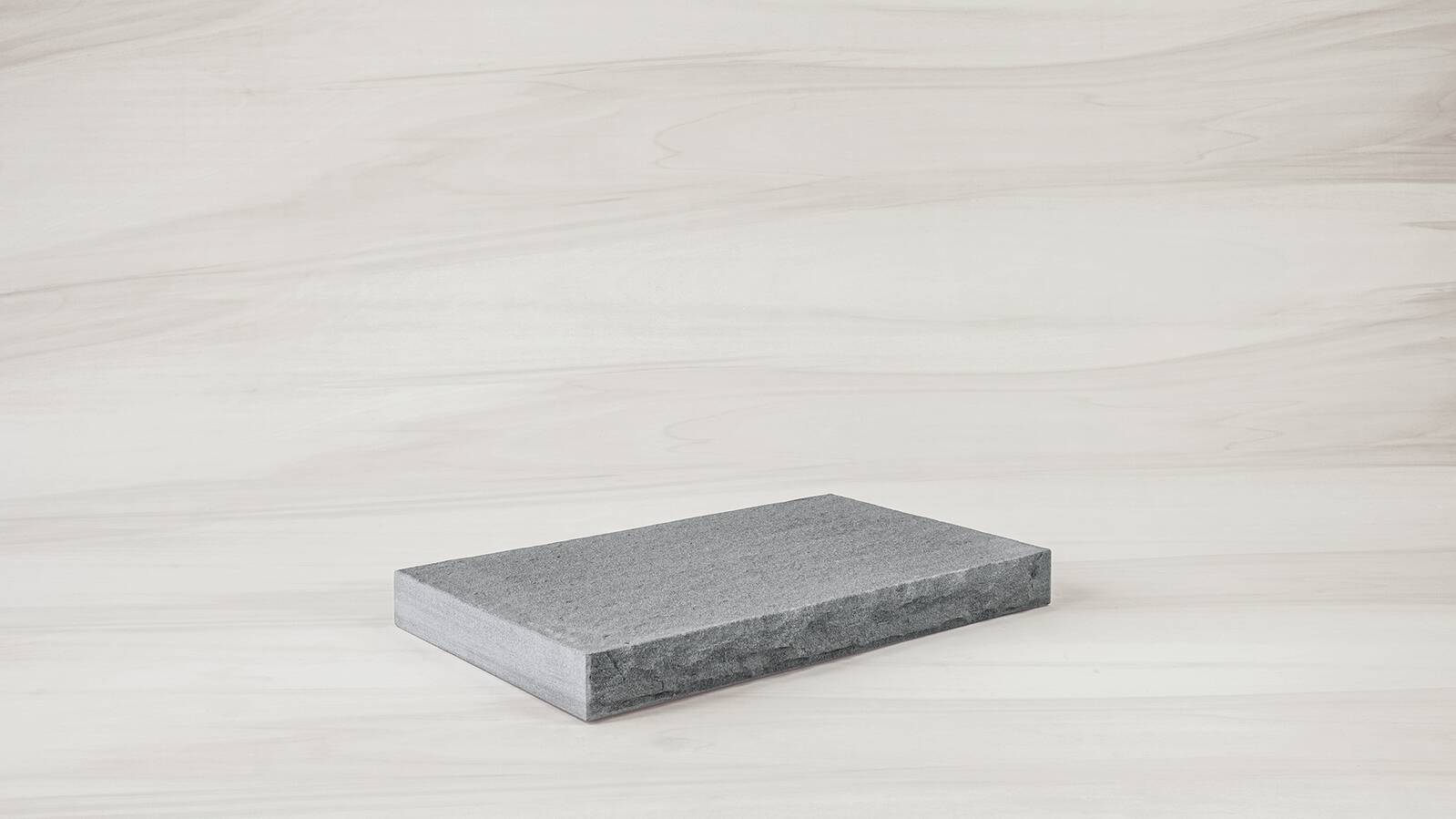

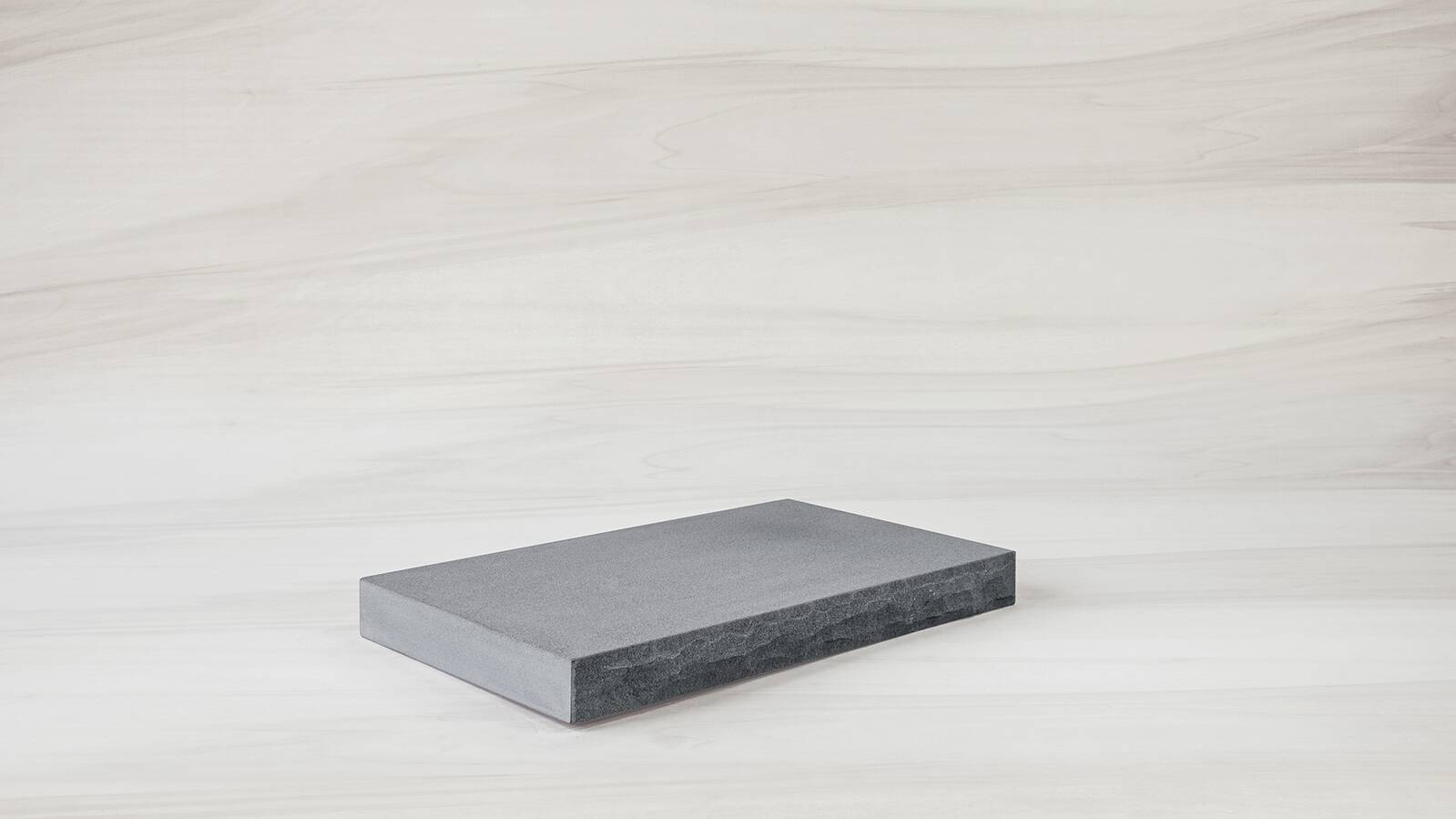

Cover plates machined
Surface sheared. One long side embossed.
Free lengths 60-120 cm
Fixed widths 30 / 40 / 50 / 60 cm
Thickness approx. 6-7 cm

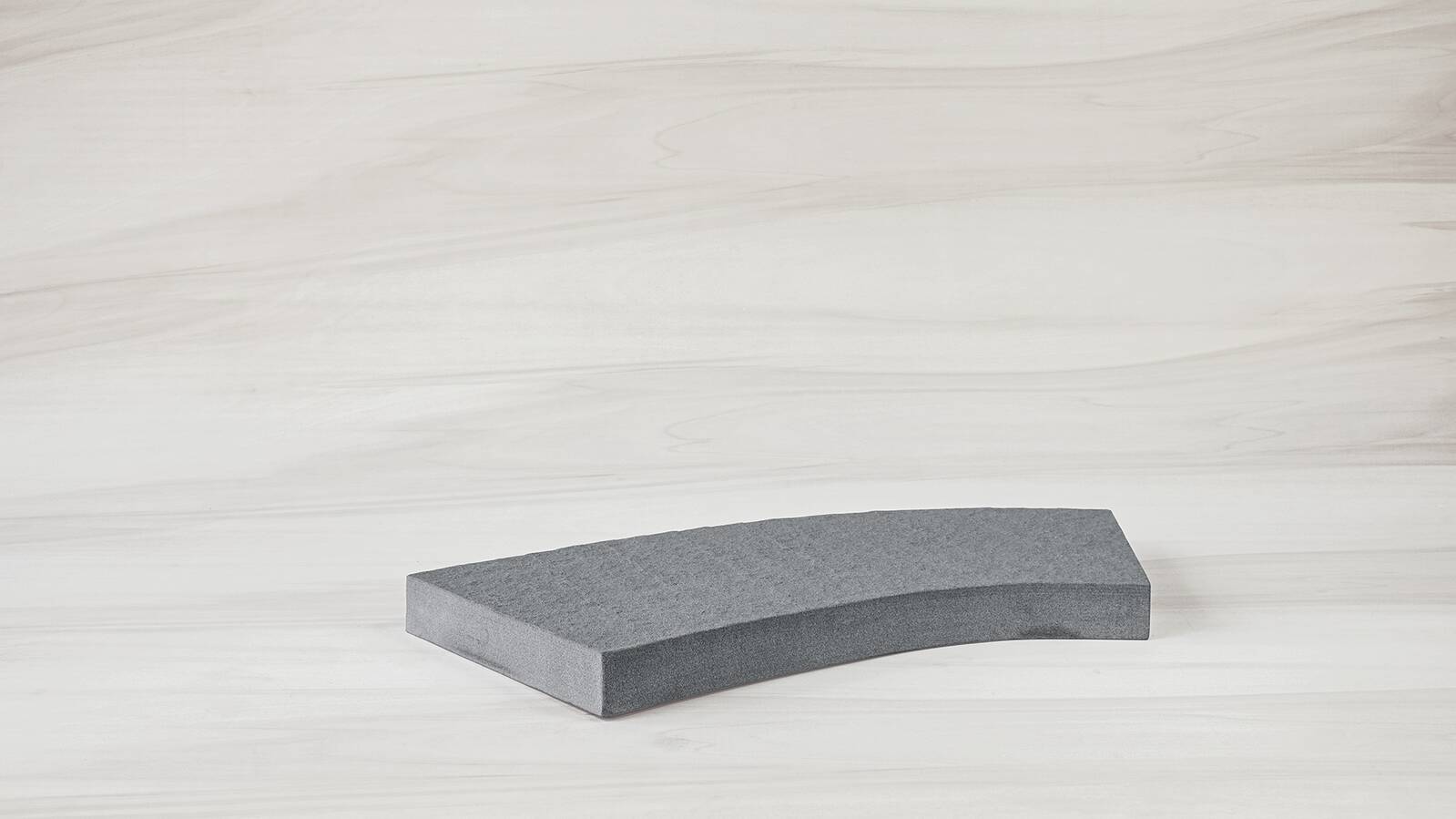

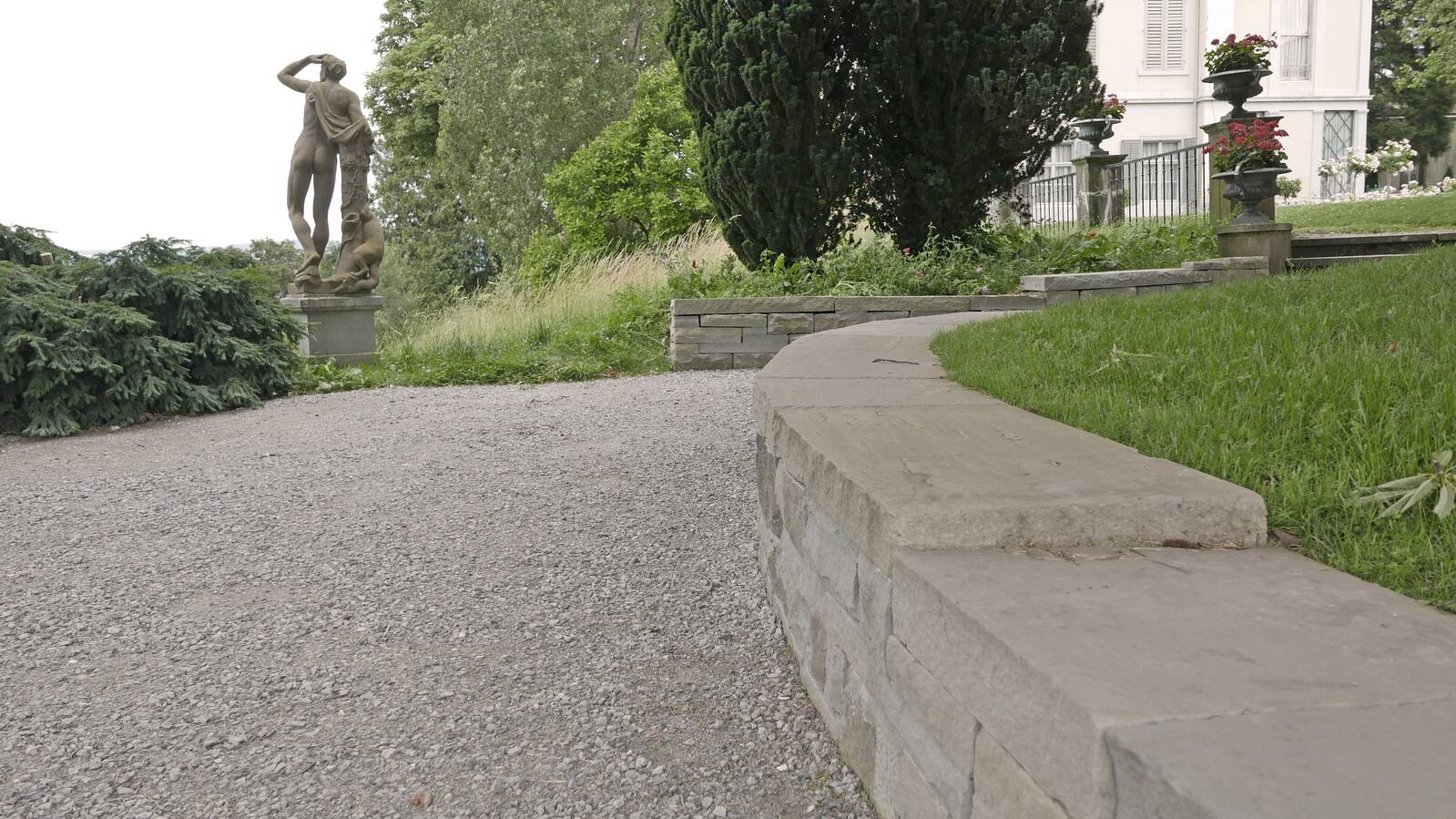

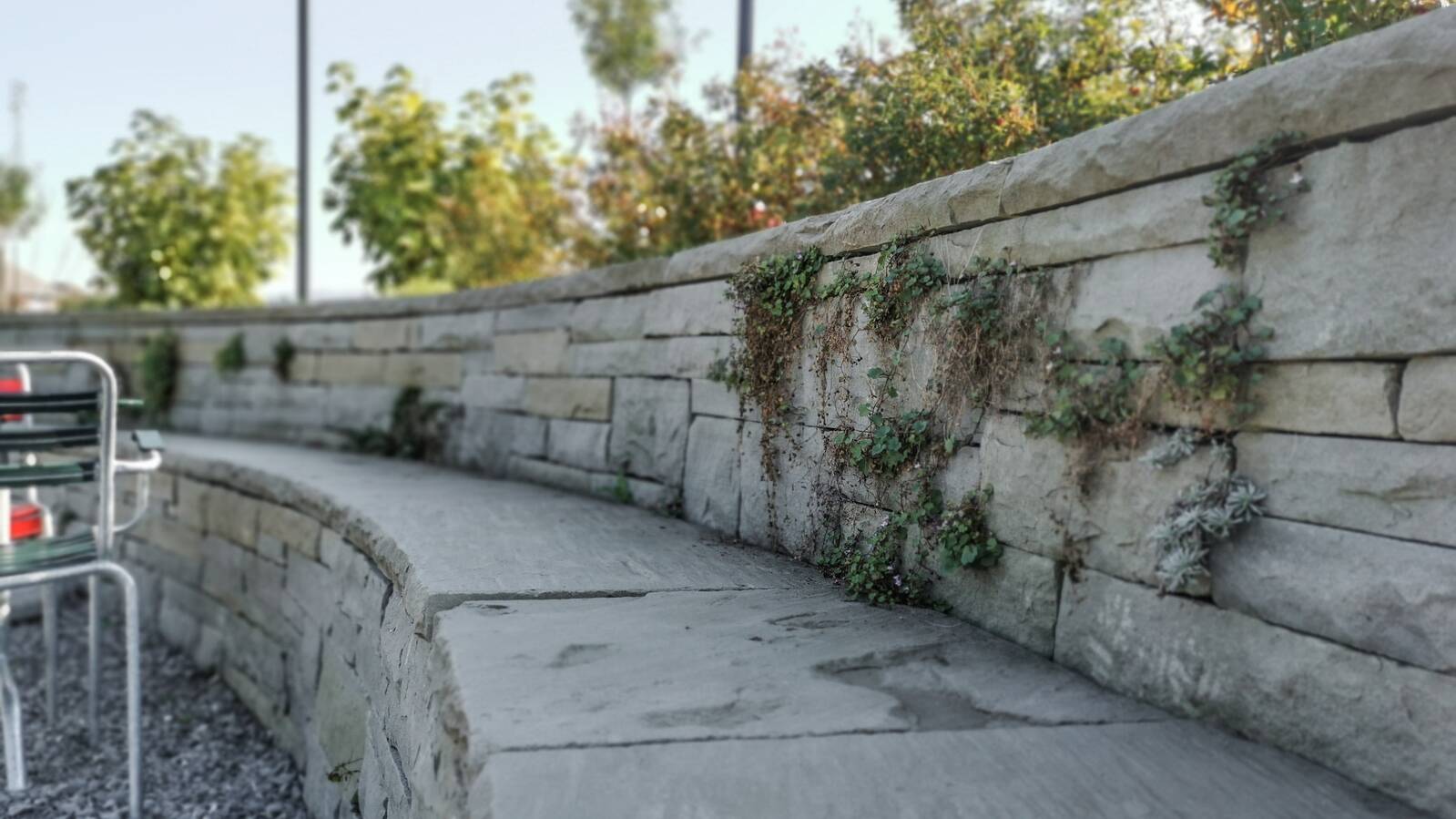

Radial cover plates
With fixed radius or free form according to template.
Edges milled or embossed.
Surface sawn / sheared / raw.
Dimensions according to specification.
Thickness 4 / 5 / 6 cm
